High Pressure 1 . 5 Inch CPU DC Cooling Fan 35mm X 35mm X 10mm

Product Categories

Shenzhen Topfan Technology Development Co., Ltd.

Contact Now

Brand Name : MX

Model Number : MX3510ABH5

Certification : CE / ROHS

Place of Origin : China

MOQ : 500pcs

Price : negotiation

Payment Terms : T / T or western Union

Supply Ability : 40 , 000pcs per month

Delivery Time : 10 - 15 working days after received your payment

Packaging Details : carton

Voltage : 5V

Motor : Brushless Type

Size : 35mm X 35mm X 10 mm

Bearing : Ball Bearing

Material : Plastic , PBT

Speed : 10000RPM

Contact Now

High Pressure 1 . 5 Inch CPU DC Cooling Fan 35mm X 35mm X 10mm

Description :

Frame and Impeller :	Plastic ( 94V - 0 ) , PBT
Bearing Type :	Sleeve bearing & Ball bearing
Function Range :	FG RD IP58 IP68
Leadwire :	Red Wire Positive ( + ) , Black Wire Negative ( - )
Operating Voltage :	5V 12V 24V
Tempetature Range :	– 20 ℃ to + 70 ℃
Motor :	Impedance Protected and Reverse Polarity Protected

Expexted life

Ball Bearing 50 , 000 hours ( 40 ^ºC )

Sleeve Bearing 30 , 000 hours ( 40 ^ºC )

Allowable Ambient Temperature Range :

1 ) . - 10 ºC ~ + 70 ºC ( Operating )

2 ) . - 20 ºC ~+70ºC ( Storage )

3 ) . non - condensing environment

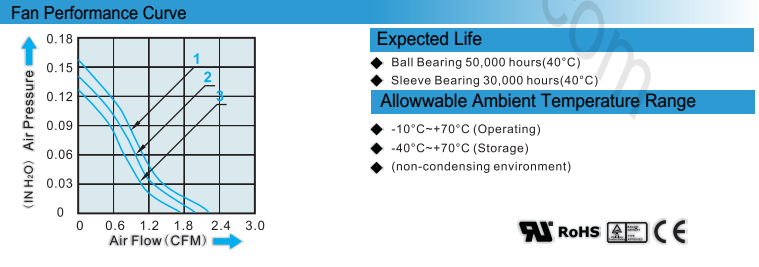

Specification :

High Pressure 1 . 5 Inch CPU DC Cooling Fan 35mm X 35mm X 10mm

Environmental Specification :

Main Materials/Parts Specification :

Dimension ( mm ) :

High Pressure 1 . 5 Inch CPU DC Cooling Fan 35mm X 35mm X 10mm
